Description
FEATURES:
- Made in Taiwan
- Max 700 CFM

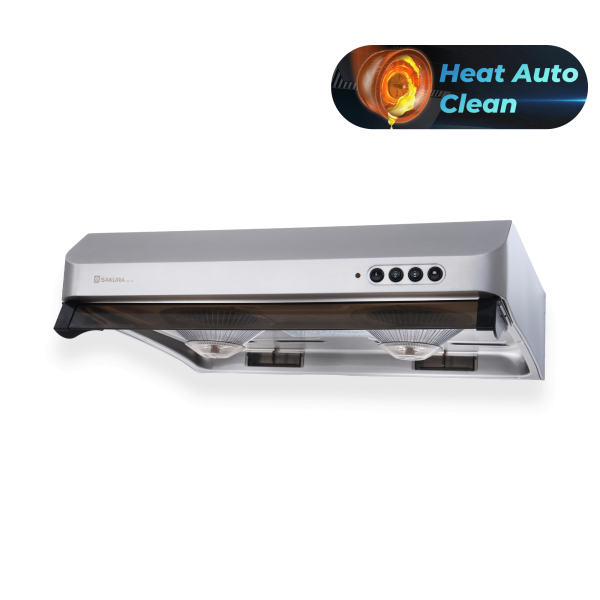

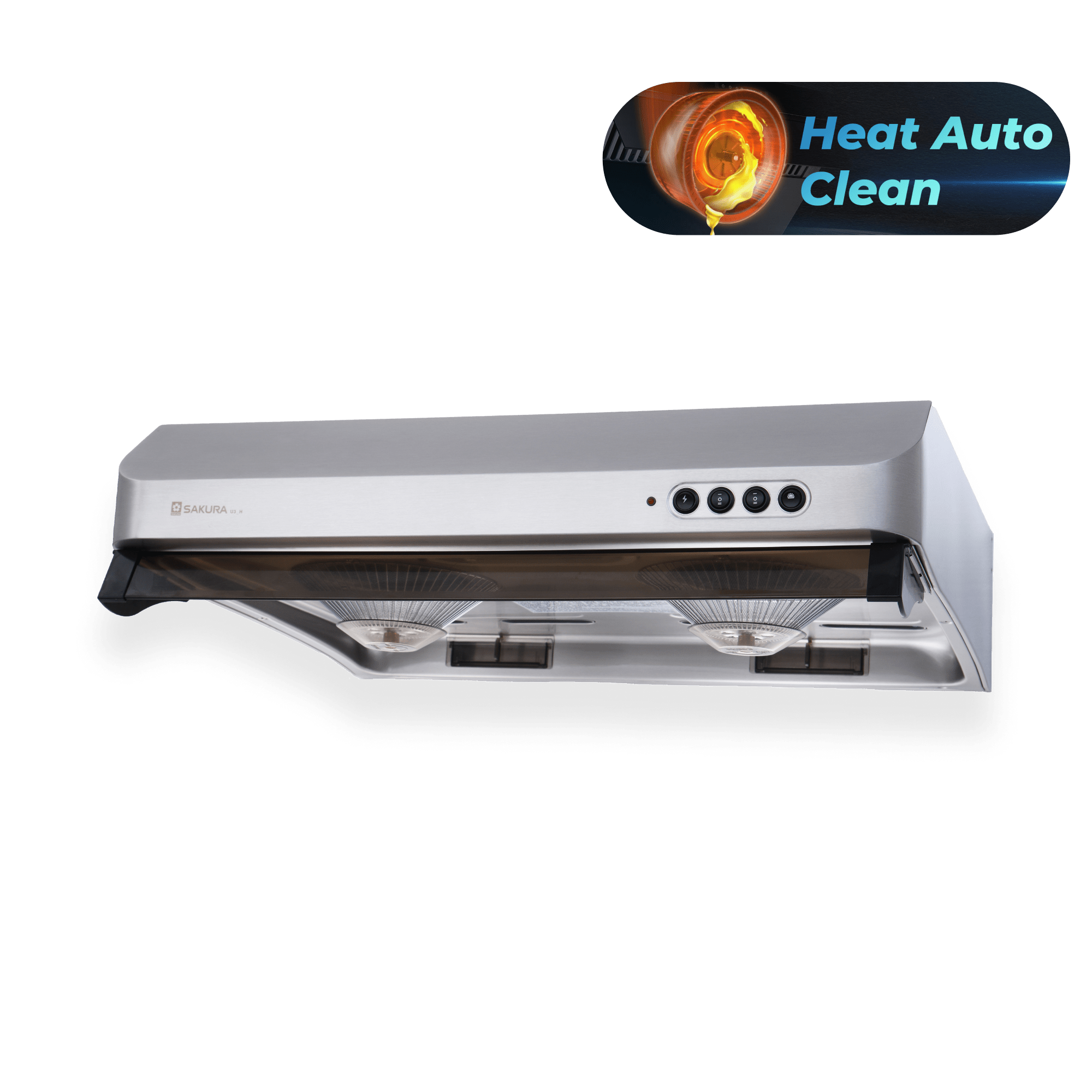

The U3H is a self-cleaning model designed for North America stoves- The fans are 14″ away from the wall and are right above the stove’s front burners for the most direct ventilation
- Additional four vent openings in rear of hood quickly exhaust steam
- In a click of a button, the self-clean function will heat up the inside of the range hood and melt up to 90% oil build up; it will automatically shut off after cleaning cycle, hassle free and easy to use
- Heat cleaning process is quiet and thorough, prolonging the lifespan of the range hood
- Two powerful centrifugal heavy-duty motors and dual turbo blow wheels revolve in opposite directions to reduce noise and increase suction power
- Patented dishwasher safe removable front and rear oil collectors
- Replaceable patented grease trapping aluminum filter system
- Front smoke cover prevent smoke and steam from escaping
- Round rocker switch with 2-speed control
- Individual light control switch
- Distance Requirement from top of hood to the counter top: Gas stove 34″, Electric stove 32″
|
Model |
U3-H |
|
|
Weight (kg) |
Net Weight 13.7kg |
|
|
|
Gross Weight 17.7kg |
|
|
Dimension (mm) |
755(W) X 636(D) X 180(H) | |
|
Dimension (Inches) |
29.7″ W x 25″ D X 7.1″ H | |
|
Voltage |
120V~60Hz |
|
|
Motor Type |
Twin AC Motors |
|
|
Filter |
Aluminum Mesh Filter |
|
|
Duct Size |
6″ (ψ152 mm) |
|
|
Illumination |
14W light bulb |
|
|
Switch Type |
Rocker Switch |
|
|
Speed |
2 speeds |
|
|
Noise level |
2~4 Sones |
|
|
CFM |
350/700 |
|
|
Power Consumption |
345W |
|
|
Safety Certificate |
CSA |
|
|
Origin |
Made in Taiwan |
|
